Generate a location and time-specific sky dome (optionally with stars)

Convenience wrapper around generate_sky() that:

Computes the Sun's apparent position for datetime, lat, and lon (via Swiss Ephemeris / swephR).
Renders the corresponding sky model.
Optionally overlays a star field using generate_stars() or moon with generate_moon_latlong().

Usage

generate_sky_latlong(
  datetime,
  lat,
  lon,
  filename = NA,
  albedo = 0.5,
  turbidity = 3,
  altitude = 0,
  resolution = 2048,
  number_cores = 1,
  hosek = TRUE,
  wide_spectrum = FALSE,
  visibility = 50,
  stars = FALSE,
  star_width = 1,
  planets = FALSE,
  moon = FALSE,
  moon_atmosphere = FALSE,
  moon_hosek = TRUE,
  render_mode = "all",
  below_horizon = TRUE,
  verbose = FALSE,
  stars_exposure = 0,
  ...
)

Arguments

datetime: POSIX-compatible date-time.
lat: Observer latitude (degrees N).
lon: Observer longitude (degrees E; west < 0).
filename: Default NA. Path to the .exr file to write.
albedo: Default 0.5. Ground albedo, range 0 to 1.
turbidity: Default 3. Atmospheric turbidity, range 1.7 to 10 (Hosek only).
altitude: Default 0. Observer altitude (m), range 0 to 15000 (Prague only).
resolution: Default 2048. Image height in pixels (width = 2 * height).
number_cores: Default 1. CPU threads to use.
hosek: Default TRUE. FALSE selects the Prague model.
wide_spectrum: Default FALSE. 55-channel Prague coefficients (altitude = 0m only).
visibility: Default 50. Meteorological range (km); Prague only.
stars: Default FALSE. If TRUE, composite a star field using generate_stars(). Automatically falls back to a pure star render when the black-sky condition is met (see Details).
star_width: Default 1. Passed to generate_stars() to control stellar point-spread size.
planets: Default FALSE. If TRUE, composite bright planets via generate_planets().
moon: Default FALSE. If TRUE, overlay a moon render from generate_moon_latlong().
moon_atmosphere: Default FALSE. If TRUE, this generates atmospheric scattering from light from the moon.
moon_hosek: Default TRUE. Whether to use the faster (but less accurate) Hosek model for atmospheric scattering from the moon. Note that the light scattered from the moon is much less intense than the sun, and thus small inaccuracies are much less likely to be noticable.
render_mode: Default "all". One of "all", "atmosphere", or "sun". Use "all" for atmosphere + solar disk, "atmosphere" for atmospheric radiance only, or "sun" for the solar disk only.
below_horizon: Default TRUE. Whether to sample atmospheric scattering below the horizon, which is non-zero when altitude > 0.
verbose: Default FALSE. Whether to print progress bars/diagnostic info.
stars_exposure: Default 0. Increases star exposure by 2^exposure. Non-physical, this just controls adjustments for artistic effect.
...: Additional named arguments forwarded to generate_stars(), and when enabled, generate_planets() and generate_moon_latlong(). Unmatched names are ignored.

Value

Either the raw data, or the data is invisibly returned if filename is given. The EXR is written to filename.

Details

Solar angles - altitude (degrees above the horizon) and azimuth (degrees clockwise from east, so 90 degrees = south) - are derived internally; you never have to supply them directly.

Black-sky rule - With the Prague model the sky radiance is defined only down to -4.2 degrees, and with the Hosek model it is defined only about 0 degrees. Below that the function skips the sky render and writes only stars when stars = TRUE.

Examples

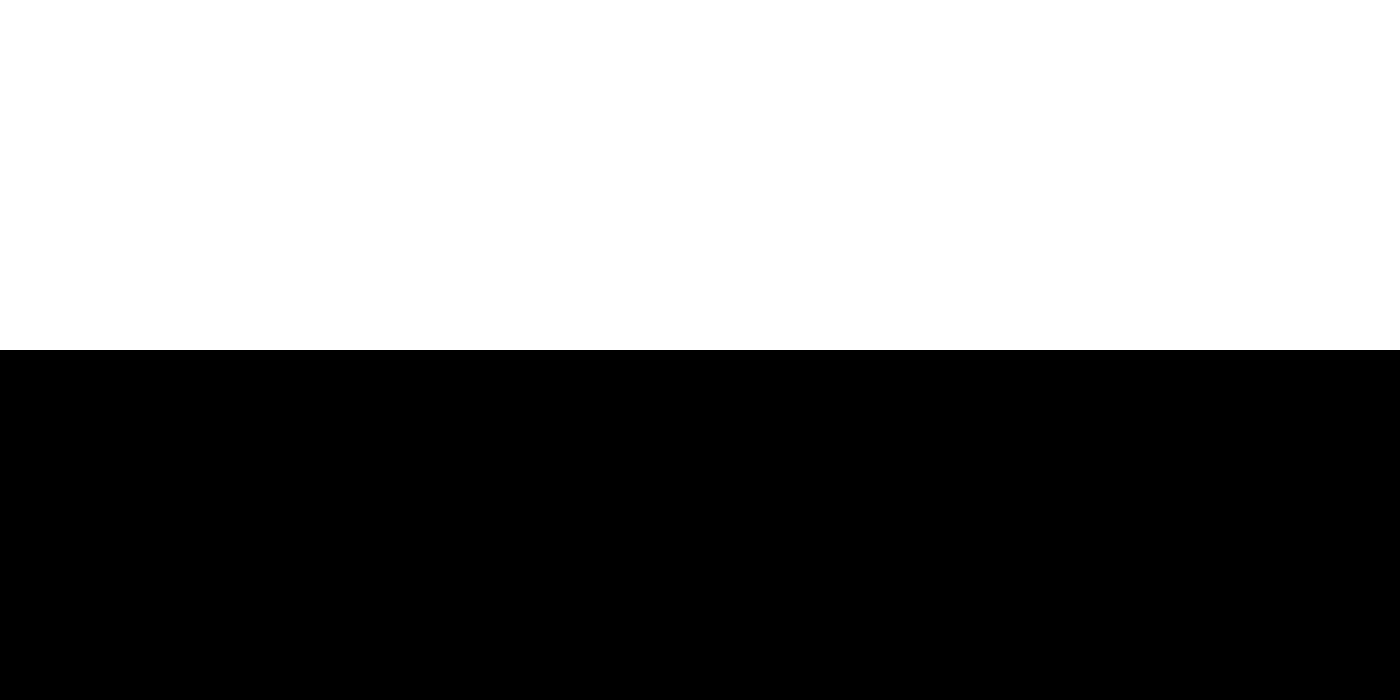

# Morning sunrise on spring solstice over Washington, DC with Prague model
if(run_documentation()) {
generate_sky_latlong(
  datetime    = as.POSIXct("2025-03-21 06:15:00",tz="EST"),
  lat         = 38.9072,
  lon         = -77.0369,
  number_cores = 2,
  hosek = FALSE
) |>
  rayimage::plot_image()
}
#>  Coefficient file for this setting not yet present: this is a large file (107MB), download? [y/n]
#> Error in check_coef_file("SkyModelDatasetGround.dat"): Input not recognized.
if(run_documentation()) {

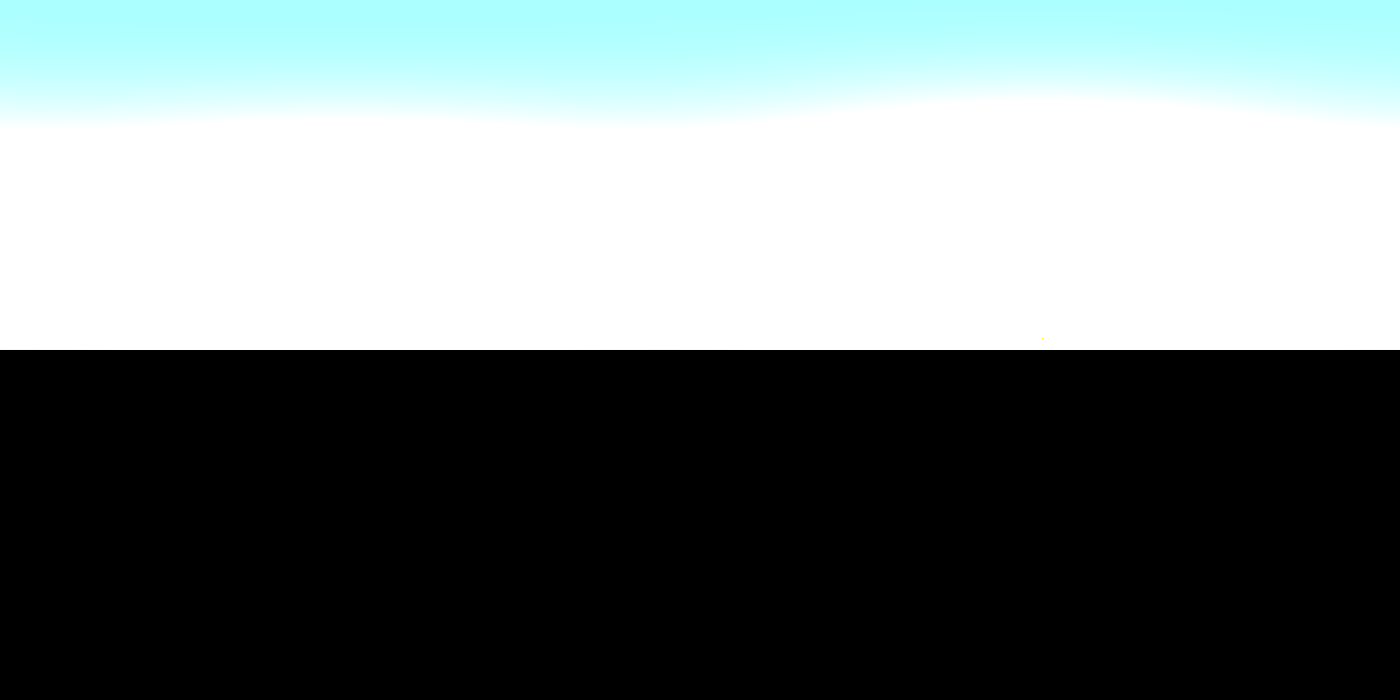

generate_sky_latlong(
  datetime    = as.POSIXct("2025-03-21 12:00:00",tz="EST"),
  lat         = 38.9072,
  lon         = -77.0369,
  number_cores = 2,
) |>
  rayimage::plot_image()
}

if(run_documentation()) {
generate_sky_latlong(
  datetime    = as.POSIXct("2025-03-21 18:00:00",tz="EST"),
  lat         = 38.9072,
  lon         = -77.0369,
  number_cores = 2,
) |>
  rayimage::plot_image()
}

if(run_documentation()) {
generate_sky_latlong(
  datetime    = as.POSIXct("2025-03-21 18:30:00",tz="EST"),
  lat         = 38.9072,
  lon         = -77.0369,
  number_cores = 2,
  hosek = FALSE,
  verbose=TRUE,
) |>
  rayimage::render_exposure(exposure=2) |>
  rayimage::plot_image()
}
#> Error: 'render_exposure' is not an exported object from 'namespace:rayimage'
